As a professional aluminum tubing supplier, GNEE often tells its clients that sourcing aluminum tubing is not simply a matter of agreeing on prices and material grades. It also involves strict dimensional tolerances, thermal traceability, and ensuring that the goods can withstand harsh ocean voyages.
On April 15, 2026, our facility completed the final inspection and packaging of a specialized batch of 6061 t6 aluminum tubing destined for a leading advanced technical services contractor based in Dubai, UAE.
This client requires high-precision structural materials for complex engineering projects in the Middle East. They cannot afford wall thickness variations, nor can they accept tubes that arrive scratched or oxidized.
In this project report, I will walk you through our actual dimension inspection process, the tolerances we achieved, and the heavy-duty export packaging standards we applied to ensure these materials arrived in pristine condition.
Are you looking for a reliable mill that provides actual dimension reports before shipment? Contact GNEE today for your custom aluminum tubing needs.
Strict Dimensional Control for 6061 T6 Extruded Aluminum Pipe
When dealing with technical services contractors, the outer diameter (OD) and wall thickness (WT) must be spot on. If a pipe is out of round or the wall thickness varies, it won't fit into the client's custom fittings, compromising the structural integrity of their entire assembly.

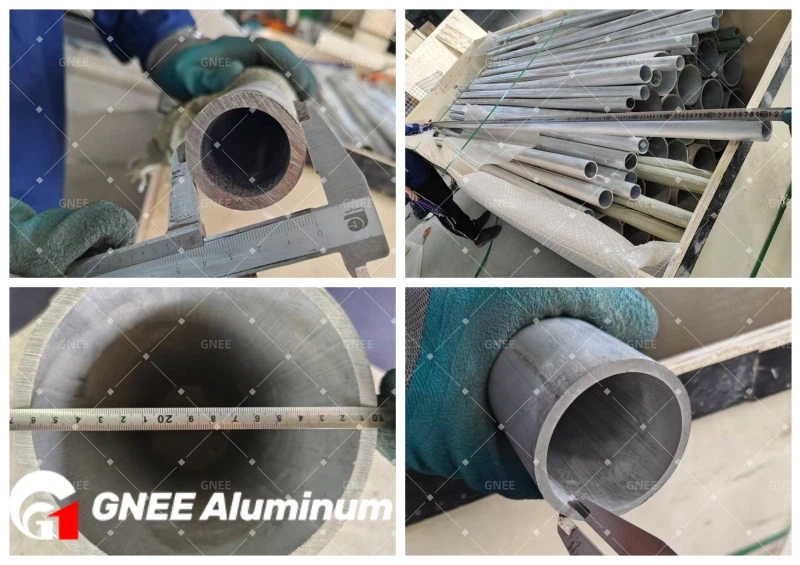

For this UAE project, the client ordered several specific sizes of extruded tubing. Before any tube was cleared for sealing into the wooden crates, my QA team and I took digital and manual caliper measurements across multiple points on the tubes.
Here is the verified dimension data from this specific batch:
| Item | Alloy & Temper | Specification (OD x WT x Length) | Inspection Method | Result Status |
| 1 | 6061-T6 | 168 mm x 8.0 mm x 2000 mm | Caliper / Visual | Passed / In Tolerance |
| 2 | 6061-T6 | 60 mm x 4.0 mm x 2000 mm | Caliper / Visual | Passed / In Tolerance |
| 3 | 6061-T6 | 48 mm x 4.0 mm x 2000 mm | Caliper / Visual | Passed / In Tolerance |
| 4 | 6061-T6 | 42 mm x 5.0 mm x 2900 mm | Caliper / Visual | Passed / In Tolerance |
| 5 | 6061-T6 | 42 mm x 3.5 mm x 2000 mm | Caliper / Visual | Passed / In Tolerance |
Let's look at the heavy-duty 168x8mm tubes. An 8mm wall thickness on a 168mm OD pipe means this material is designed to handle significant mechanical stress or internal pressure. During our caliper checks, the wall thickness was highly consistent, showing no eccentric deviation. The internal surface was clean, smooth, and free of extrusion die marks, which is critical for fluid dynamics or inserting internal components.
Heat Traceability in 6061 T6 Aluminum Structural Pipe Manufacturing
In high-end engineering, material traceability is a mandatory requirement. You can't just ship bare silver tubes and expect the client to trust that it is actually T6 tempered 6061.

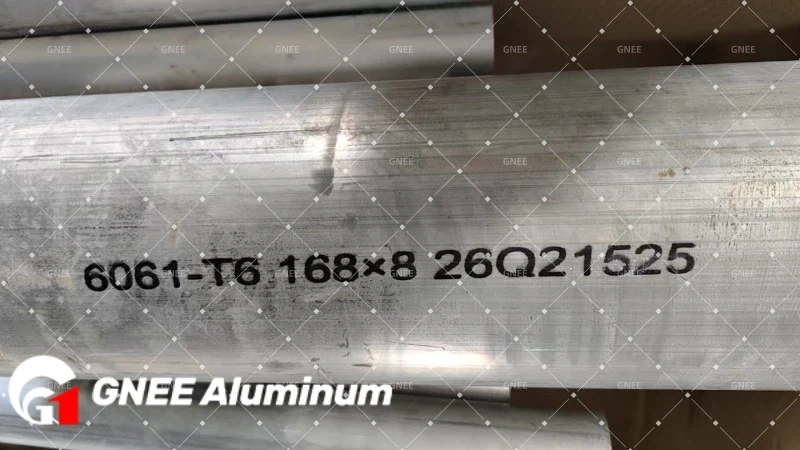

If you look closely at our inspection photos, every single tube is clearly stenciled with industrial black ink. For example, one of the tubes bears the marking 6061-T6 168x8 26Q21525.
What does this mean for the buyer?
- 6061-T6: Identifies the exact alloy and temper. The T6 temper means the aluminum has been solution heat-treated and artificially aged to achieve a minimum yield strength of 240 MPa.
- 168x8: Confirms the exact Outer Diameter and Wall Thickness.
- 26Q21525: This is the most critical part-the Heat Number (Batch Code). If the client in Dubai ever needs to pull the exact chemical composition (the exact percentages of Magnesium, Silicon, Copper, etc.) or the mechanical test results from the day this tube was extruded, this number ties directly back to our EN 10204 3.1 Mill Test Certificate (MTC).
We don't cut corners on traceability. When you buy from GNEE, you know exactly what melt your pipe came from.
Partner with GNEE for fully traceable, stenciled aluminum piping.
Request a quote and a sample today
Why Dubai Demands Premium 6061 T6 Seamless Aluminum Tube
You might wonder why a technical services company in Dubai specifically requested 6061-T6 rather than a standard 6063 architectural alloy. The answer lies in the operating environment and the mechanical requirements.
Dubai presents a harsh environment: extreme ambient temperatures, high humidity, and, in many industrial areas, high salinity from the Persian Gulf. The 6061 alloy contains magnesium and silicon, which form a highly resilient natural oxide layer, making it far superior to steel in terms of rust prevention in coastal environments.
Furthermore, the T6 heat treatment provides the structural backbone. While 6063 is great for window frames, 6061-T6 is engineered for load-bearing frameworks, pressure vessels, and heavy-duty machining parts. The chips break cleanly when machined, which saves the UAE client immense time and tool wear during their final CNC fabrication processes.
Ocean Freight Protection for Wholesale 6061 T6 Aluminum Round Tube
Manufacturing a perfect tube is only half the job. Delivering it 6,000 kilometers away across the ocean without a single scratch is the real challenge. Aluminum is notoriously vulnerable to "white rust" (galvanic corrosion) if exposed to trapped condensation inside a shipping container, and it scratches easily if tubes rub against each other during heavy sea swells.
For this order, we utilized our maximum-security export packaging protocol, specifically designed for Middle Eastern sea freight:
- Individual Scratch Protection: Before bundling, the tubes were wrapped. For specific sensitive items and samples (like the elbow fitting), we used heavy-duty bubble wrap to absorb any shock.
- Moisture Barrier: The bundles are isolated to prevent the humid sea air from reacting with the bare aluminum surface. We ensure no moisture is trapped inside the bundle.
- Fumigated Wooden Crates: We don't just throw bundles into a container. We constructed custom, heavy-duty wooden crates. These boxes are ISPM-15 compliant (fumigated), which is a strict customs requirement for the UAE.

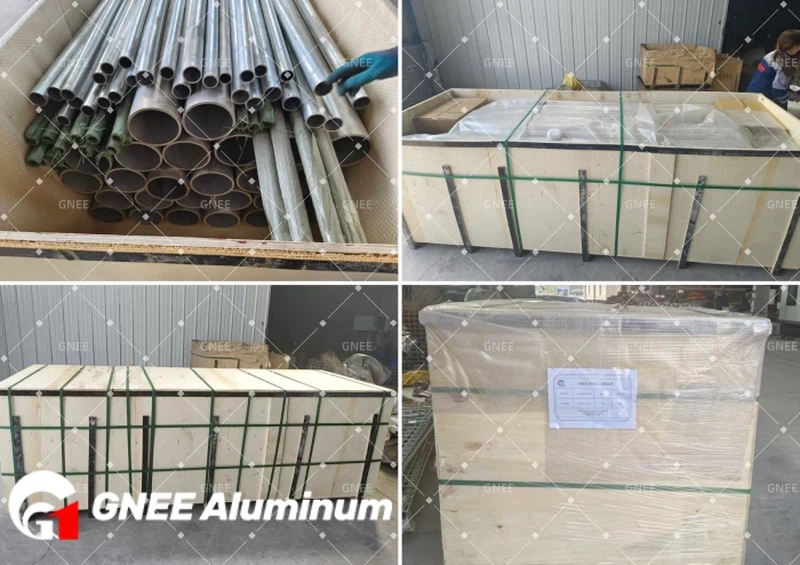

- Rigid Strapping: As seen in our final packaging photos, the crates are reinforced internally and externally. We use high-tension green PET strapping and steel bands around the wooden cases. This ensures that even if the crane drops the container harshly at the Jebel Ali Port, the wooden crate will not burst open, and the tubes inside will remain perfectly aligned and undamaged.
When the client opens this box in Dubai, the tubes will look exactly as they did on our factory floor in China.
This shipment to HMS is just one of hundreds of successful export projects we execute annually. Whether you need thick-walled 168mm pipes for structural columns or thin-walled 42mm tubes for precision machining, GNEE delivers verified dimensions, uncompromising traceability, and bulletproof packaging.
Ready to upgrade your aluminum supply chain? Send your exact OD, WT, Length, and Alloy requirements to GNEE today. Our engineering sales team will provide a comprehensive quotation within 24 hours.
