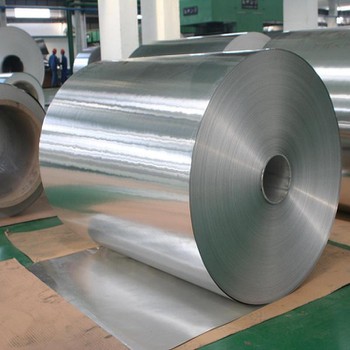

Aluminum Coil 5754 Sheet: Marine-Grade, High-Strength Magnesium Alloy Solutions

Aluminum Coil 5754 Sheet is a premium 5xxx series aluminum-magnesium alloy, engineered with a controlled magnesium content (2.6-3.6%) and trace chromium additions (0.05-0.20%) to deliver exceptional corrosion resistance, impressive strength-to-weight ratio, and reliable formability. As a non-heat-treatable alloy, it outperforms standard 3xxx series products in harsh environments, making it the go-to choice for marine, coastal architectural, and heavy-duty industrial applications. Available in tempers ranging from O (fully annealed) to H34 (stabilized quarter-hard), this alloy balances ductility for complex forming with structural rigidity for load-bearing parts. Compliant with international standards (ASTM B209, EN 573-3, GB/T 3880), 5754 aluminum coil sheets are trusted by global engineers, shipbuilders, and contractors for their durability, weldability, and long-term performance in challenging conditions.

The production of Aluminum Coil 5754 Sheet follows a precision-driven, multi-stage process to ensure consistent quality and optimized properties. It starts with high-purity aluminum ingots, which are alloyed with exact amounts of magnesium-this primary alloying element boosts strength by 30-40% compared to 3003 aluminum without compromising formability. Chromium is added to refine grain structure, enhancing toughness and resistance to stress corrosion cracking. The alloyed billets are homogenized at 450-500°C to eliminate internal stress and grain inconsistency, then hot-rolled into primary coils to achieve the desired thickness range. For applications requiring tight tolerances and smooth surfaces, cold rolling and annealing are performed: O temper maximizes ductility for deep drawing and curved forming, while H-series tempers (H32, H34) gain strength through work hardening and stabilization. Final quality checks include spectroscopy for chemical composition, mechanical property testing, dimensional inspection, and surface defect screening-ensuring every batch meets the rigorous demands of marine and industrial use.

Core Traits of Aluminum Coil 5754 Sheet

What sets 5754 aluminum apart is its unique combination of marine-grade corrosion resistance, balanced strength, and fabrication flexibility-making it indispensable for harsh-environment applications. Key attributes include:

1. Superior Corrosion Resistance

The magnesium-chromium alloy system equips 5754 sheets with exceptional resistance to saltwater, atmospheric corrosion, and mild chemical attack-outperforming 3003 and 1xxx series alloys. It resists pitting, crevice corrosion, and stress corrosion cracking, making it ideal for marine vessels, coastal buildings, and offshore platforms. Unlike steel, it forms a protective natural oxide layer that prevents rust, ensuring long service life with minimal maintenance even in high-humidity or salt-spray environments.

2. Balanced Strength & Formability

With tensile strength up to 310 MPa (H34 temper), 5754 aluminum offers structural rigidity for load-bearing parts while retaining excellent ductility. O-temper sheets can be deep-drawn, bent, and rolled into complex shapes (e.g., boat hulls, curved cladding) without cracking, while H32/H34 tempers deliver the strength needed for structural components like roofing systems and pressure vessels. This balance makes it suitable for both decorative and heavy-duty applications.

3. Excellent Weldability

5754 aluminum coil sheets are highly weldable using standard MIG, TIG, and resistance welding methods, with minimal strength loss in the weld zone. ER5356 or ER5183 filler wires are recommended to match the alloy's magnesium content, ensuring welds that are both strong and corrosion-resistant. This weldability simplifies fabrication of large structures like boat hulls, industrial tanks, and architectural frameworks.

4. Lightweight & Structural Efficiency

At 2.68 g/cm³, 5754 aluminum is 38% lighter than steel, reducing transportation, handling, and installation costs. Its high strength-to-weight ratio means lighter end products without compromising durability-critical for marine vessels (improving maneuverability and fuel efficiency) and architectural projects (reducing structural load).

5. Consistent Quality & Dimensional Stability

Precision rolling and annealing processes ensure tight dimensional tolerances (thickness tolerance ±0.005mm, flatness ≤0.2mm/m) and a smooth, uniform surface (Ra ≤0.8μm). This consistency guarantees seamless assembly, reduces waste in fabrication, and ensures uniform performance across large-scale projects-from shipyards to high-rise construction sites.

Technical Specifications of Aluminum Coil 5754 Sheet

We offer fully customized 5754 aluminum coil sheets, with tailored tempers, thicknesses, and surface finishes to match your application needs. Key technical parameters are as follows:

1. Chemical Composition

2. Mechanical Properties by Temper

Temper

O (Annealed)

H112 (As-Rolled)

H32 (Stabilized Half-Hard)

H34 (Stabilized Quarter-Hard)

Tensile Strength (MPa)

190-230

220-260

260-300

280-310

Yield Strength (MPa)

60-90

90-130

160-200

190-230

Elongation (50mm, %)

≥20

≥15

≥10

≥8

3. Dimensional & Surface Specifications

Thickness: 0.3mm - 8.0mm (coil), 0.5mm - 12.0mm (cut sheet)

Width: 1000mm - 2000mm (coil), 1000×2000mm, 1220×2440mm (standard sheets)

Coil Details: Weight 50kg - 5000kg, inner diameter 508mm / 610mm (standard)

Surface Finishes: Mill finish, brushed, anodized (clear/colored), PVDF-lacquered, embossed

Compliance: ASTM B209, EN 573-3, GB/T 3880, REACH/RoHS, ISO 9001

Key Applications of Aluminum Coil 5754 Sheet

5754 aluminum coil sheets are designed for harsh environments and structural applications, making them a top choice across multiple industries. Common use cases include:

1. Marine & Offshore

As a marine-grade alloy, 5754 is widely used for boat hulls, decks, superstructures, and offshore platform components. Its saltwater corrosion resistance and formability allow for curved hull fabrication, while lightweight properties improve vessel maneuverability. H32 temper is preferred for structural marine parts, ensuring strength without sacrificing flexibility.

2. Architectural Exteriors (Coastal)

Ideal for coastal building cladding, roofing, curtain walls, and decorative trim. 5754 resists salt spray and humidity, maintaining structural integrity and aesthetics for 25+ years. PVDF-lacquered sheets enhance weather resistance, making them suitable for high-rises, coastal resorts, and industrial facilities near saltwater.

3. Automotive & Transportation

Used for automotive body panels, fuel tanks, trailer floors, and bus exteriors. The lightweight nature reduces vehicle weight (boosting fuel efficiency), while corrosion resistance stands up to road salt and moisture. H34 temper is used for structural components, while O-temper suits deep-drawn parts like fuel tanks.

4. Industrial Equipment & Storage

A top choice for chemical storage tanks (mild chemicals), pressure vessels, industrial ductwork, and machine covers. Its corrosion resistance protects against industrial pollutants, and weldability simplifies fabrication of large enclosures. H32 temper provides the strength needed for heavy-duty equipment parts.

5. Agricultural & Heavy Machinery

Used for agricultural sprayers, irrigation systems, greenhouse frames, and tractor body panels. Its lightweight reduces machinery load, while corrosion resistance withstands outdoor farming conditions. O-temper sheets offer formability for custom parts, and H112 temper delivers durability for heavy-duty use.

6. Liquid Storage & Pressure Vessels

Suitable for water tanks, hydraulic reservoirs, and fuel storage containers. 5754's strength and corrosion resistance ensure it can withstand internal pressure and harsh operating environments, while weldability allows for seamless fabrication. H32 temper is preferred for pressure vessel applications.

Fabrication & Handling Best Practices

Proper fabrication and handling maximize the performance and lifespan of 5754 aluminum coil sheets. Follow these industry-proven tips:

1. Handling & Storage

Store coils vertically on dedicated racks to maintain flatness and prevent deformation. Use non-abrasive slings or vacuum lifters to avoid surface scratches-critical for anodized or lacquered sheets. Keep in a clean, dry warehouse (relative humidity ≤60%) to prevent oxidation, and cover with moisture-proof film for extended storage. Avoid contact with corrosive materials and ensure proper ventilation.

2. Cutting & Forming

Use precision laser cutters, plasma cutters, or sharp shears for clean edges-dull tools cause burring. O-temper sheets can be bent to tight radii (1.5× material thickness), while H-series tempers require larger radii (3× material thickness) to avoid cracking. Apply protective tape to forming areas and use lubricants during deep drawing to reduce friction.

3. Welding & Joining

Use ER5356 or ER5183 filler wire for MIG/TIG welding to match alloy composition. Clean weld areas thoroughly to remove oxides and oil before welding, and use low heat input to prevent warping. Post-weld, rinse with water to remove flux residues and prevent corrosion.

4. Surface Treatment & Maintenance

Anodizing enhances corrosion resistance and color options (clear, black, bronze). PVDF coatings provide long-term weather resistance for outdoor applications. Clean surfaces with mild detergent and a soft cloth-avoid abrasive cleaners. For coastal use, rinse periodically with fresh water to remove salt buildup.

Our Quality Assurance & Customization Services

We understand 5754 aluminum coil sheets are critical for your high-performance applications-consistency and customization are non-negotiable. Our services include:

Strict Quality Control: Every batch undergoes chemical composition testing, mechanical property analysis, and dimensional inspection. Detailed test reports are provided with each shipment.

Customization: Tailored tempers, thicknesses, widths, and surface finishes (anodized, PVDF-lacquered) to match your needs. Pre-cut sheets and slitted coils simplify fabrication.

Technical Support: Our metallurgy experts offer on-site guidance for welding, forming, and surface treatment. Small-batch samples are available for testing before mass production.

Reliable Logistics: Products are packaged with moisture-proof film and heavy-duty crates for safe transit. Global shipping with on-time delivery, including batch delivery for large projects.

Whether you need 5754 aluminum coil sheets for marine vessels, coastal architecture, or industrial equipment, our products deliver uncompromising performance. Contact us today to discuss your specifications, request samples, or get a personalized quote tailored to your project.
