The Al-Mn Series in Construction
The 3000 series uses manganese as the principal alloying element, which raises strength above that of pure aluminium while retaining the ductility and corrosion resistance the metal is known for. 3003 is the general-purpose grade, 3004 adds about 1 percent magnesium for higher strength, and 3005 sits close to 3004 with a slightly adjusted composition. In construction, these alloys appear in signs, billboards, façade cladding, gutters, flashings, roof sheets and interior partitions where weight saving and long service life matter.
Typical Supply Range and Tempers

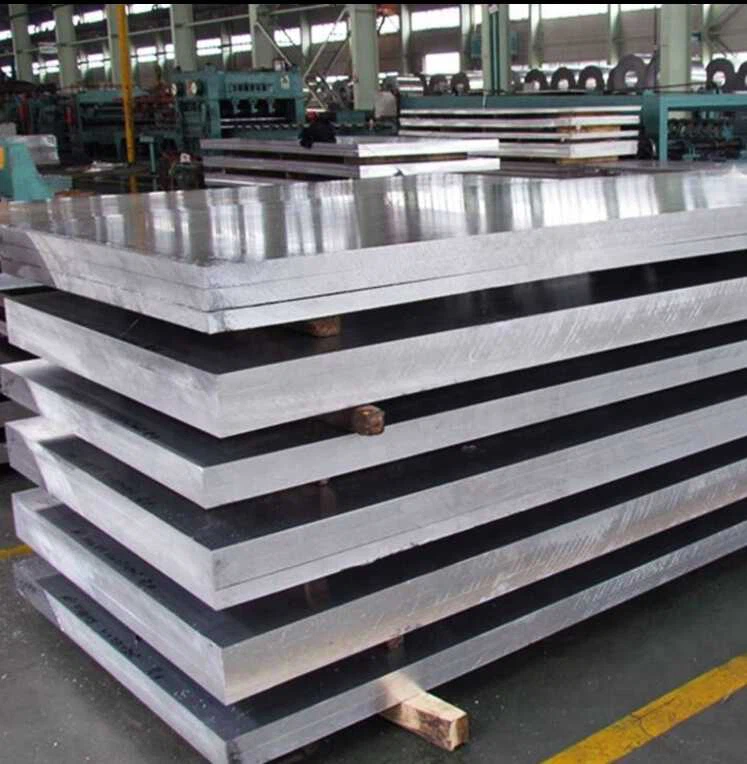

Construction sheet and plate are commonly supplied in thicknesses from 0.3 mm to 150 mm, widths from 10 mm to 2500 mm and lengths from 20 mm to 8000 mm. Common tempers include O for deep forming, H12 and H14 for moderate strength with good flatness, H18 for maximum strain hardening, and H24 for a half-hard condition that balances stiffness and bendability. The temper should be chosen according to the forming operation: heavily drawn or rolled sections suit O or H12, while flat panels that must stay stiff suit H14 and above.
Applications Across Building Types
Signage and billboard frames benefit from the alloy's flatness and paint-holding surface. Roofing and cladding panels rely on the material's resistance to atmospheric corrosion and its low weight, which reduces the load transmitted to the supporting structure. Interior applications include ceiling tiles, partition facings and ductwork. In industrial buildings the same sheet is used for equipment enclosures, cable trays and protective covers, where the combination of formability and corrosion resistance avoids the maintenance burden of painted carbon steel.
Quality and Dimensional Requirements
Material is normally supplied to ASTM B209, EN 573-1 or GB/T 3880.1, and should be free of white rust, oil patches, roll marks, edge damage, camber, dents, holes, break lines and scratches, and free from excessive coil set. Packaging for export typically uses wooden pallets, craft paper and anti-moisture agents so that the surface condition survives sea transport. If the panels are to be anodised or painted, the surface class and oil residue limits must be agreed with the supplier in advance, because surface defects become visible after finishing.
Selection Guidance for Buyers
Define the application, the required thickness and temper, the sheet size and the surface finish before requesting quotations. For load-bearing architectural elements, confirm the yield strength and tolerance class against the drawing. For decorative parts, specify the surface quality class and whether one or two sides must be defect-free. Ask for mill test certificates and, where the project demands it, third-party inspection such as SGS to verify composition and mechanical properties against the stated standard.
FAQ
What is the difference between 3003 and 3004?
3004 contains roughly 1 percent magnesium in addition to manganese, giving it higher strength than 3003. For structural panels and press-formed components that need extra stiffness, 3004 is preferred.
Can 3003 sheet be welded?
Yes, 3003 is one of the most weldable aluminium alloys and is frequently used for fabrications. Filler selection and joint design should follow standard aluminium welding practice.
Is this material suitable for exterior cladding?
Yes. The alloy resists atmospheric corrosion well, and when finished with PVDF or polyester paint it is widely used for exterior cladding and roofing panels.
What thickness is best for a sign board?
For flat signage, 1.0 to 2.0 mm is typical. For framed or large-format billboards, 2.0 to 3.0 mm with stiffening ribs is common.
Do you supply cut-to-size sheets?
Yes, sheets can be cut to the required length and width, with edges left mill finish or deburred, and packaged for export in wooden pallets.
Frequently Asked Questions
Q: Which alloy grades does this article cover? The article covers 3003, 3004, 3005 in aluminum plate form, and it compares how the different alloying systems affect strength, corrosion resistance and formability.
Q: What thickness or gauge range is available? Typical gauges mentioned in the article range from 0.3 mm, 150 mm, 10 mm, 2500 mm, which covers the common sheet, plate and foil requirements for this grade.
Q: Which tempers are available for this product? Available tempers mentioned in the article include O, H12, H14, H18, so buyers can choose between softer, more formable states and harder, higher-strength states.
Q: What are the main applications of this product? The article highlights its use in packaging, construction, building, roofing, signage, cable, where the combination of light weight, corrosion resistance and formability provides the main benefit.
Q: Which standards or specifications apply to this product? Quality is verified against ASTM B209, EN 573-1, GB/T 3880, so buyers can reference the same specifications when the material is inspected on arrival.
