Modern public transit is designed and manufactured with safety, durability, and operational efficiency in mind.
The flooring of a bus, a component subjected to extreme everyday stress, is crucial in all three areas. As a result, choosing a flooring material is an important technical decision.
Anti-slip aluminum plates, particularly those constructed of 3003 and 5052 alloys, have emerged as a top choice, providing an amazing balance of safety, durability, and lightweight performance.
This tutorial delves deep into the realm of 3003/5052 anti-slip aluminum plates for buses, examining the subtleties of each alloy, production quality, and distinguishing advantages over traditional materials.
Understanding Anti-Slip Aluminum Plates

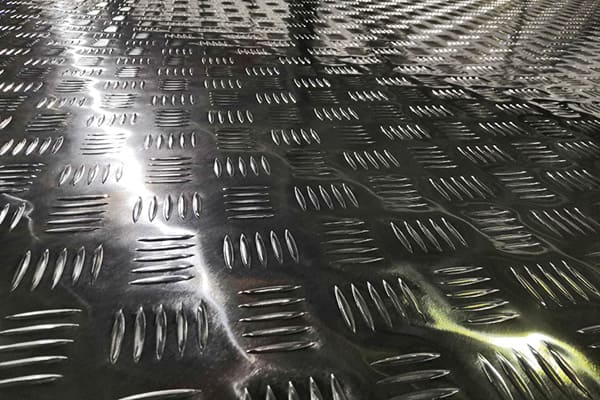

At its heart, an anti-slip aluminum plate, also known as a checker plate or tread plate, is a flat aluminum sheet with a raised, repeating pattern on one side.
This pattern is more than just decorative; it is designed to boost the coefficient of friction, considerably lowering the danger of slips and falls, particularly in damp or stressful situations.
The most typical patterns you'll come across include
Five-Bar Pattern: The most common option for vehicle flooring, providing multi-directional grip.
Diamond (or Propeller) Pattern: A classic shape that offers exceptional traction.
Three- and two-bar patterns: Variations with varied aesthetic and grip properties.
These plates are efficient because the elevated bars or diamonds generate pathways for water to disperse while also providing solid contact points for footwear.
The Contenders: A Deep Dive into 3003 and 5052 Aluminum Alloys
While both are great materials, 3003 and 5052 aluminum alloys have unique metallurgical qualities that make them acceptable for varying degrees of demand.
3003 Aluminum Alloy is a reliable workhorse from the 3xxx class, with manganese as the principal alloying element (usually 1.0-1.5%).
This additive increases its strength by approximately 20% above pure aluminum (1100 series), while maintaining outstanding corrosion resistance and formability.
Key strengths include excellent corrosion resistance, decent workability, moderate strength, and cost-effectiveness.
Plates are typically tempered at H22 or H14, indicating that they have been strain-hardened and partially annealed for improved formability.
5052 Aluminum Alloy is a high-performance alloy of the 5xxx series. Its principal alloying element is magnesium (2.2-2.8%).
The addition of magnesium resulted in much greater strength than the non-heat-treatable 3xxx series alloys.
Key advantages include excellent strength (the greatest among typical non-heat-treatable grades), exceptional corrosion resistance (particularly in marine and industrial applications), and good weldability.
Plates are typically tempered at H32 or H34, indicating that they have been strain-hardened and stabilized for long-term strength.
Head-to-Head Comparison: 3003 vs. 5052 Anti-slip aluminum plates for buses
To make an informed conclusion, direct comparisons of their mechanical properties are required. The statistics presented below are typical values for these alloys in common tempers used for anti-slip plates.
| Property | 3003-H22 Aluminum Alloy | 5052-H32 Aluminum Alloy | Insight for Bus Application |
| Tensile Strength (Ultimate) | ~150 MPa (22,000 psi) | ~228 MPa (33,000 psi) | 5052 is over 50% stronger. This is critical for resisting dents from heavy luggage, wheelchairs, and long-term structural fatigue from millions of passenger steps. |
| Yield Strength | ~124 MPa (18,000 psi) | ~193 MPa (28,000 psi) | 5052 has a 55% higher yield strength. This means it can withstand more force before permanent deformation (denting) occurs, preserving the floor's integrity. |
| Corrosion Resistance | Excellent | Excellent (Superior in saltwater/industrial) | Both are highly resistant to cleaning chemicals and moisture. 5052's superiority offers an extra margin of safety against road salts and harsh detergents. |
| Formability (Workability) | Excellent | Good | 3003 is slightly easier to bend and form, which can be an advantage when fitting plates around complex wheel arches or steps, potentially reducing fabrication time. |
| Weldability | Good | Excellent | Both can be welded, but 5052 is generally preferred for structural welds, offering higher strength in the welded zone. |
| Relative Cost | Lower | Higher | 3003 offers a significant upfront cost saving. The choice depends on balancing initial budget with long-term durability and lifecycle cost. |
The Verdict for Bus Flooring:

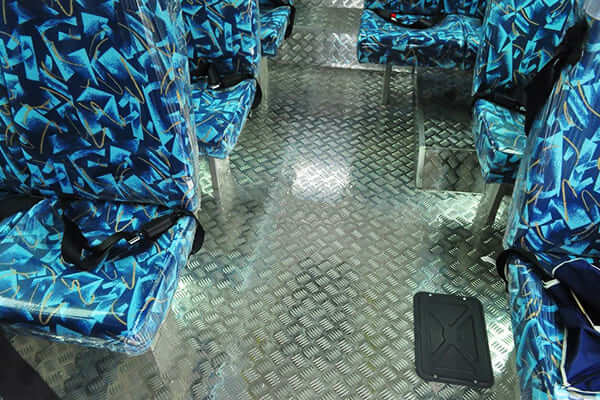

While the 3003 anti-slip aluminum plate is a perfectly realistic and cost-effective alternative for lower-traffic areas or shuttle buses, the 5052 anti-slip aluminum plate is clearly the better choice for high-traffic metropolitan buses.
Its significantly enhanced strength and durability directly translate into a longer service life, lower maintenance requirements, and stronger resilience to the daily abuse of public transportation.
The slight increase in initial cost is frequently offset by a lower total cost of ownership.
The Importance of Manufacturing Quality: A Note on Suppliers
Choosing the proper alloy is only part of the process. The quality of the anti-slip plate itself is similarly important, including thickness consistency, pattern precision, and conformity to metallurgical requirements. This is when working with a reliable supplier becomes critical.
For example, GNEE Aluminum distinguishes itself by not only providing a wide choice of 3003 and 5052 anti-slip plates, but also by adhering to strict quality control methods.
They offer material certifications that trace the chemical composition and mechanical qualities of each batch, assuring that the material you specify matches the material you receive.
For automotive applications, looking for a supplier with experience and certifications such as IATF 16949 can add a layer of assurance to process control and product consistency.
A high-quality plate from a reputable manufacturer, such as GNEE Aluminum, ensures that the pattern provides consistent grip and that the material performs to its full engineering potential.
Comparison with Alternative Bus Flooring Materials
To truly comprehend the benefits of aluminum, compare it to other prevalent flooring options.
vs.steel checker plate
Weight: Aluminum is around one-third the weight of steel. For a bus, this translates directly into increased fuel efficiency and fewer emissions over the vehicle's life.
Corrosion: When steel's protective coating is scratched, it rusts, but aluminum naturally produces a protective oxide layer, making it significantly more resistant to corrosion from moisture and road salt.
vs. rubber or vinyl flooring:
Durability: Aluminum plates are extremely resistant to tearing, gouging, and abrasion from high foot traffic, luggage wheels, and strollers.
Installation and Maintenance Best Practices
To increase the longevity and performance of your aluminum flooring:
Ensure a Solid Subfloor: To avoid flexing and noise, install the plates on a level, structurally solid subfloor.
Use Appropriate Fasteners: To avoid galvanic corrosion where the fastener contacts the aluminum, use stainless steel or suitably coated fasteners.
Regular Cleaning: Use neutral pH detergents. Avoid using very acidic or alkaline cleansers, as they can discolor aluminum over time.
Inspect on a regular basis: Check fasteners and seams to verify the floor is secure.
Conclusion
Choosing between 3003 and 5052 anti-slip aluminum plates for buses is a strategic decision. For applications where cost is a main consideration and traffic is modest, the 3003 alloy delivers a dependable and corrosion-resistant surface. However, in the challenging environment of modern urban transit, the 5052 alloy's greater strength, endurance, and lifecycle value make it the obvious technical choice.
Bus makers are not simply installing a floor when they choose the suitable high-quality aluminum alloy and work with a recognized supplier; they are making a long-term investment in passenger safety, operational efficiency, and fleet endurance.
