Aluminum Coupling

Henan Gnee New Material Co., Ltd. is one of the most reliable manufacturers and suppliers of aluminum coupling in China. With abundant experience, we warmly welcome you to wholesale high quality aluminum coupling in stock here from our factory. Good service and reasonable price are available.



GNEE supplies aluminum couplings for connecting two pipes, tubes or threaded components in piping systems. Depending on the connection design, a coupling can provide a permanent welded connection or a detachable threaded connection.



Available types include full couplings, half couplings, reducing couplings, threaded couplings and socket-weld couplings. Aluminum alloys can be selected according to the required connection method, dimensions and service environment.



For applicable forged aluminum and aluminum-alloy socket-welding and threaded fittings, ASME B16.52 provides requirements for ratings, dimensions, tolerances, marking and materials. Where forged construction is specified, ASTM B247 can be used for the aluminum forging material. For NPT threaded couplings, ASME B1.20.1 covers the thread dimensions and gauging requirements.



GNEE can supply standard and custom aluminum couplings according to alloy, size, connection type, thread standard and applicable specification.

Request a Quote for Aluminum Couplings

1. Aluminum Coupling Types



Aluminum couplings are selected mainly according to the pipe connection method and whether the two connection sizes are the same.

Coupling Type	Design	Connection	Applicable Standard
Full Coupling	Two connection ends with the same nominal size	Threaded / Socket Weld	ASME B16.52 where applicable
Half Coupling	One connection end with a plain or weldable side	Threaded / Socket Weld	ASME B16.52 where applicable
Reducing Coupling	Two ends with different nominal sizes	Threaded / Socket Weld	ASME B16.52 where applicable
Threaded Coupling	Internal pipe threads	NPT / BSP / Specified	ASME B16.52 where applicable
Socket-Weld Coupling	Internal sockets	Socket Weld	ASME B16.52 where applicable
Custom Coupling	Special dimensions or end configurations	Per drawing	Customer specification

The applicable standard depends on the coupling type, manufacturing method and connection. The standard should be confirmed before production.





2. Full Aluminum Coupling

A full coupling connects two pipes or tubes through two connection ends of the same nominal size.

This type is commonly selected when:

Both connected components have the same nominal size

A compact connection is required

The connection may need to be removed for maintenance (threaded version)

Threaded or socket-weld installation is preferred

Threaded full couplings are particularly common in small-bore piping and utility systems.



3. Half Aluminum Coupling

A half coupling connects a pipe, tube or fitting to an equipment wall, header, vessel or other component. One end has a threaded or socket-weld connection, and the other end is plain or weldable.

Typical configurations include:

Threaded × weldable end

Socket-weld × weldable end

Threaded × plain end

Custom end preparation

Half couplings are often used as connection points for gauges, valves, instruments and branch piping.

The exact end preparation should be confirmed from the customer's drawing because the term "half coupling" can describe different connection arrangements depending on the project specification.



4. Reducing Aluminum Coupling

A reducing coupling connects two components with different nominal sizes.

For example, a 2" × 1" aluminum reducing coupling can connect a larger threaded pipe to a smaller threaded component.

Reducing couplings are useful when:

A pipeline changes size locally

An instrument connection is smaller than the main line

A valve has a different connection size

A compact size transition is required

For larger diameter changes, an aluminum reducer is normally more appropriate than a coupling.





5. Threaded Aluminum Coupling

Threaded couplings provide a detachable connection without welding.

Common thread systems include:

NPT

BSPT

BSPP

Metric threads where specified

For NPT products, ASME B1.20.1 covers the thread form, dimensions, allowances and gauging requirements.

Important Thread Note

NPT, BSP and metric threads are different systems and are not interchangeable.

Before production, the buyer should specify:

Thread standard (NPT, BSPT, BSPP or other)

Nominal size

Thread direction (usually right-hand)

Thread tolerance where applicable

For export orders, specifying the exact thread standard is especially important because a nominal 1" connection does not automatically mean the same thread geometry in different systems.





6. Socket-Weld Aluminum Coupling

A socket-weld coupling has an internal socket. The pipe is inserted into the socket and welded around the joint.

Compared with a butt-weld connection, the pipe does not require a butt-weld bevel at the coupling end.

Socket-weld couplings are mainly considered for smaller-bore piping, instrumentation and utility connections.

Applicable forged aluminum socket-weld fittings may reference ASME B16.52. The standard applies to forged fittings. Couplings machined from bar stock may not fall under B16.52. The manufacturing method should be confirmed with the supplier.



7. Aluminum Coupling Dimensions

For forged threaded couplings, ASME B16.52-2024 provides reference dimensions. The table below shows Schedule 160 threaded coupling dimensions from B16.52 Table 1.2.1-5.

Threaded Coupling Reference Dimensions (Schedule 160)

NPS	DN	Full Coupling Length W (mm)	Half Coupling Length W/2 (mm)	Outside Diameter D (mm)	Min. End Wall Thickness G (mm)	Min. Thread Length B (mm)
1/8	6	32	16	16	4.8	6.4
1/4	8	35	17.5	19	4.8	8.1
3/8	10	38	19	22	4.8	9.1
1/2	15	48	24	28	6.4	10.9
3/4	20	51	25.5	35	6.4	12.7
1	25	60	30	44	9.7	14.7
1-1/4	32	67	33.5	57	9.7	17.0
1-1/2	40	79	39.5	64	11.2	17.8
2	50	86	43	76	12.7	19.0
2-1/2	65	92	46	92	15.7	23.6
3	80	108	54	108	19.0	25.9
4	100	121	60.5	140	22.4	27.7

Notes:

W is the full coupling end-to-end length. A half coupling has a length of W/2.

D is the outside diameter of the coupling body.

G is the minimum end wall thickness at the threaded end.

B is the minimum length of internal thread. The useful thread length shall not be less than L2 required by ASME B1.20.1.

These are Schedule 160 reference dimensions from ASME B16.52-2024. Dimensions for other designated schedules (Schedule 40, 80) are provided in separate tables of the standard.



Socket-Weld Coupling Dimensions

Socket-weld coupling dimensions are provided in ASME B16.52-2024 Table 1.2.1-2 (Socket-Welding Fittings). The available sizes and dimensions depend on the designated schedule (Schedule 40, 80 or 160). Schedule 160 socket-weld fittings are limited to NPS 1/8–2.

For socket-weld coupling dimensions, please confirm with GNEE according to your required size and schedule.

Specifying Coupling Sizes

Couplings can be specified using NPS, DN or actual tube/pipe dimensions.

For threaded products, provide the nominal pipe size together with the thread standard.

For tube systems, provide the actual outside diameter, wall thickness and thread specification if applicable. This avoids confusion between pipe size and actual outside diameter.



8. Coupling vs Reducer

These two products have different primary functions.

Feature	Aluminum Coupling	Aluminum Reducer
Main Function	Join two components	Change pipe diameter
Same-Size Connection	Common	No
Different-Size Connection	Reducing coupling available	Main purpose
Threaded Version	Common	Available depending on design
Socket-Weld Version	Common for small sizes	Application dependent
Typical Size	Small-bore connections	Small to large pipe transitions

If the main requirement is to join two pipes of the same size, a coupling is normally the more appropriate product. If the objective is to transition from one pipe diameter to another, a reducer is usually more suitable.



9. Coupling vs Union

A coupling and a union can both connect two pipe sections, but their designs are different.

Feature	Coupling	Union
Construction	Usually one-piece fitting	Typically multi-piece fitting
Assembly	Threaded or welded	Designed for quick disconnection
Maintenance	Requires disconnecting pipe or fitting	Easier component removal
Typical Use	Permanent or semi-permanent joining	Maintenance access
Size	Commonly small bore	Commonly small bore

A union is preferable when regular disassembly is an important design requirement.



10. Technical Specifications

Parameter	Specification
Product	Aluminum Coupling
Types	Full / Half / Reducing / Threaded / Socket-Weld
Connection	Threaded / Socket Weld / Custom
Size	NPS 1/8–4 commonly supplied for forged fittings; larger sizes available for evaluation on request
GNEE Standard Supply Range	NPS 1/8–4 where applicable (confirm with GNEE)
Alloys	6061, 6063, 5083, 5086, 3003 and other suitable aluminum alloys
Temper	According to alloy, manufacturing route and specification
Thread	NPT / BSP / Metric / Customer Specification
Thread Standard	ASME B1.20.1-2013 (R2018) for NPT; other systems per specified standard
Fitting Standard	ASME B16.52-2024 where applicable to forged nonferrous fittings
Material Standard	ASTM B247-25 for applicable aluminum forgings; ASTM B361-16(2024) also recognized by B16.52
Surface	Mill Finish / Anodized / Custom
Manufacturing	Forging, machining or other agreed manufacturing route
Inspection	Dimensional / Thread / Visual / Material Verification
Packaging	Carton / Wooden Case / Pallet according to size and shipping requirements

Note: The available alloy, size, temper and manufacturing method depend on the coupling design. The final specification should be confirmed against the customer's drawing and applicable standard before production.

Contact Our Engineers Today

Manufacturing Options

Forged coupling: Aluminum billet or forging stock → Heating → Forging → Heat treatment where required → CNC machining → Thread or socket machining → Inspection

Machined coupling: Aluminum bar or suitable stock → Cutting → CNC turning → Internal/external machining → Threading → Deburring → Inspection

Custom coupling: Non-standard configurations produced according to drawings, samples or customer specifications



About Pipe Schedule

ASME B16.52 uses a Designated Schedule system (Schedule 40, 80 or 160) for pressure ratings and dimensions. The pressure rating of a B16.52 fitting is based on the equivalent pipe wall thickness, not a standalone pressure class. Schedule 40, 80 or 160 should not be treated as the standalone pressure rating of an aluminum coupling. The actual pressure capability depends on alloy, temper, wall thickness, fitting geometry, size, operating temperature, connection method, applicable design code and service conditions.



11. Aluminum Alloys for Couplings

Different aluminum alloys provide different combinations of strength, corrosion resistance, weldability and machinability.

Alloy	Main Characteristics	Potential Applications
6061	Good strength, machinability and weldability	Industrial piping and equipment
6063	Good extrusion characteristics and surface finish	Lightweight systems
5083	Good corrosion resistance and weldability	Marine and offshore applications
5086	Good corrosion resistance and weldability	Marine piping
3003	Good formability and corrosion resistance	General-purpose applications



12. Standards for Aluminum Couplings

Standard	Application
ASME B16.52-2024	Forged nonferrous threaded and socket-welding fittings, including aluminum and aluminum alloys
ASTM B247-25	Aluminum and aluminum-alloy die forgings, hand forgings and rolled ring forgings
ASTM B361-16(2024)	Factory-made wrought aluminum and aluminum-alloy welding fittings (recognized by B16.52 as an alternative material standard)
ASME B1.20.1-2013 (R2018)	Pipe threads, general purpose, inch (NPT)

Read More: Aluminum Pipe Fittings Standards

13. Applications

Industrial Piping

Aluminum couplings can join sections of lightweight process and utility piping where aluminum is compatible with the service environment.

Compressed-Air Systems

Threaded and socket-weld couplings can be used for aluminum air-distribution systems and equipment connections.

Instrumentation

Small threaded couplings are suitable for connecting gauges, transmitters, sampling lines and other instrument components.

HVAC Systems

Aluminum couplings can be used in compatible air and fluid distribution systems where low weight and corrosion resistance are important.

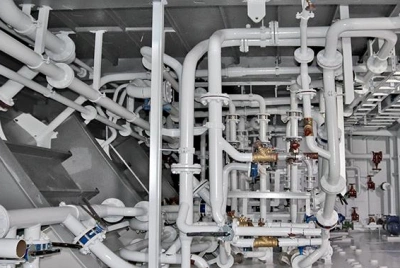

Marine Applications

Suitable marine-grade aluminum alloys such as 5083 and 5086 can be considered for compatible marine piping applications. Material selection should account for seawater exposure, welding requirements, galvanic compatibility and the actual design pressure and temperature.

Equipment Connections

Half couplings can provide compact connection points on tanks, headers, vessels and other equipment.

14. Inspection and Quality Control

GNEE can arrange inspection according to the agreed product specification and purchase order.

Dimensional Inspection

Overall length (full coupling W or half coupling W/2)

Outside diameter

Inside diameter or socket bore

Thread dimensions where applicable

Socket depth where applicable

Wall thickness

Hex dimensions where applicable

Thread Inspection (for threaded couplings)

Thread type verification

Thread size and pitch

Thread engagement

Thread gauge inspection per ASME B1.20.1 where applicable

Material Verification

Material certificate

Chemical composition

Alloy verification

Mechanical property documentation where required

Surface Inspection

Cracks, excessive machining marks, dents, burrs, surface damage

Additional inspection or testing can be discussed for project orders. Inspection requirements should be agreed before production.

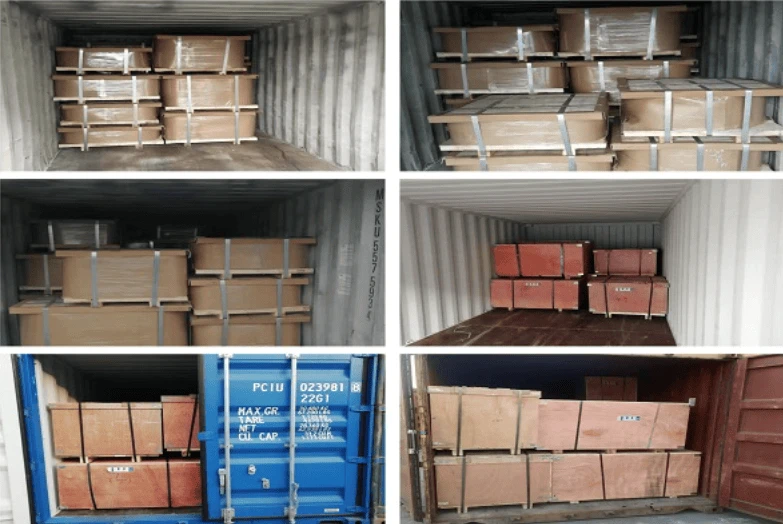

15. Packaging

GNEE uses export packaging designed to protect aluminum couplings during handling, loading and international transportation.

Typical packaging includes:

Individual protective bags

Plastic film

Cartons

Wooden cases

Wooden pallets

Strapping

Small couplings can be packed in cartons and secured on wooden pallets. Larger couplings or custom products can be protected with suitable packaging materials. Packaging can be adjusted according to container loading requirements, coupling size, quantity, destination and customer packaging instructions.





16. Frequently Asked Questions

What is an aluminum coupling?

An aluminum coupling is a pipe fitting used to connect two compatible pipes, tubes or threaded components.

What is the difference between a full coupling and a half coupling?

A full coupling has two connection ends and is designed to connect two pipe ends. A half coupling has one connection end and is generally used to connect a pipe or equipment connection to another component.

Can aluminum couplings be threaded?

Yes. Aluminum couplings can be manufactured with internal threads, including NPT and BSP configurations where the alloy and design are suitable.

What standard is used for threaded aluminum couplings?

Applicable forged aluminum threaded fittings can be manufactured to ASME B16.52. For NPT threads, ASME B1.20.1 provides the thread dimensions and gauging requirements.

What material standard applies to forged aluminum couplings?

Where forged construction is specified, ASTM B247 can specify the aluminum forging material. ASME B16.52 also recognizes ASTM B361 as an alternative material standard for aluminum. B247 is a material specification, not a dimensional fitting standard.

Are aluminum couplings suitable for seawater?

Certain marine aluminum alloys such as 5083 and 5086 have good corrosion resistance, but suitability depends on the complete piping system, service conditions, welding procedure and galvanic environment.

Can custom aluminum couplings be manufactured?

Yes. Custom couplings can be evaluated according to drawings, samples, dimensions, thread specifications and application requirements.

Are Schedule 40, 80 and 160 the same as pressure classes?

No. ASME B16.52 uses a Designated Schedule system based on equivalent pipe wall thickness. The pressure rating of a coupling depends on the alloy, temper, wall thickness, geometry, temperature and applicable design code. Schedule 40, 80 or 160 should not be treated as standalone pressure ratings.

Can aluminum couplings be anodized?

Anodizing is generally suitable for machined or threaded couplings. For socket-weld couplings that will be welded, confirm the anodizing requirement together with the welding process.



18. Request a Quote for Aluminum Couplings

GNEE supplies aluminum couplings for industrial, marine, HVAC, compressed-air, instrumentation and equipment connection applications.

For an accurate quotation, please provide:

Required Information	Example
Product	Aluminum Coupling
Type	Full / Half / Reducing
Size	NPS 2 / DN50
Connection	Female × Female
Thread	NPT
Alloy	6061
Temper	As required
Standard	ASME B16.52
Quantity	500 pcs
Application	Compressed-Air Piping
Drawing	If custom

For custom aluminum couplings, a dimensional drawing is strongly recommended.

Request a Quote



Hot Tags: aluminum coupling, China aluminum coupling manufacturers, suppliers, factory
