Henan Gnee New Material Co., Ltd. is one of the most reliable manufacturers and suppliers of aluminum pipe tee in China. With abundant experience, we warmly welcome you to wholesale high quality aluminum pipe tee in stock here from our factory. Good service and reasonable price are available.
GNEE is a manufacturer and supplier of aluminum tees - also called aluminum tee fittings - for piping and tubing systems. An aluminum tee creates a branch connection: it splits one flow path into two, or joins two flow paths into one, depending on the piping arrangement.
Available configurations include aluminum equal tees and aluminum reducing tees, with butt-weld, threaded and socket-weld connections where applicable. Aluminum tees can be supplied in different alloys, sizes, wall thicknesses and connection configurations according to the product design and customer requirements.
Applicable factory-made wrought aluminum and aluminum-alloy welding tees can be supplied according to ASTM B361, with dimensions according to ASME B16.9 where applicable. ASME B16.52 covers applicable forged nonferrous fittings with threaded and socket-welding ends, including aluminum and aluminum alloys.
Request a Quote for Aluminum Tees
Aluminum Tee Types
Aluminum tees are mainly classified by the relationship between the run diameter and the branch diameter.
|
Type |
Description |
Connection |
Applicable Standard |
|
Equal Aluminum Tee |
Run and branch have the same nominal size |
Butt Weld |
ASTM B361 / ASME B16.9 where applicable |
|
Reducing Aluminum Tee |
Branch has a smaller nominal size than the run |
Butt Weld |
ASTM B361 / ASME B16.9 where applicable |
|
Threaded Aluminum Tee |
Equal or reducing configuration with threaded ends |
NPT / BSP or specified thread |
ASME B16.52 where applicable |
|
Aluminum Socket-Weld Tee |
Equal or reducing configuration with socket-weld ends |
Socket Weld |
ASME B16.52 where applicable |
The applicable standard depends on the fitting type, manufacturing method and connection configuration. Confirm the standard before production.

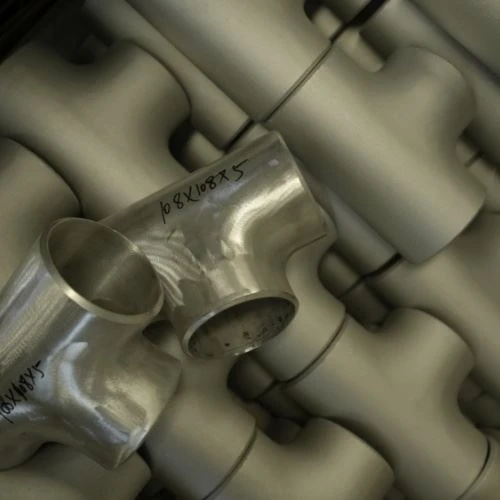

Equal Aluminum Tee
An aluminum equal tee has the same nominal size at the run and the branch.
For example, a 2" × 2" × 2" aluminum tee has a 2-inch run and a 2-inch branch.
Equal tees are commonly used when a piping system needs to split one line into two branches of the same nominal size.
Typical applications:
Industrial piping
Compressed-air systems
HVAC systems
Equipment connections
Marine piping
Distribution manifolds
For applicable butt-weld fittings, dimensions should be selected for the specified size and configuration according to ASME B16.9.

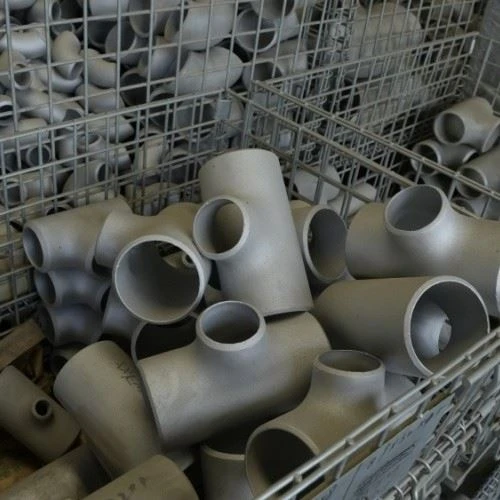

Reducing Aluminum Tee
An aluminum reducing tee has a smaller branch diameter than the main run.
For example, a 4" × 4" × 2" reducing aluminum tee has a 4-inch run and a 2-inch branch.
A reducing tee creates a branch connection without the need for a separate reducer and tee in some piping layouts.
Typical applications:
Process piping
Equipment branches
Instrument connections
HVAC distribution
Compressed-air systems
Marine piping
Available reducing combinations depend on the applicable fitting dimensions, manufacturing process and customer requirements.
Aluminum Tee Connection Types
The right connection type depends on the installation method and the existing piping system.

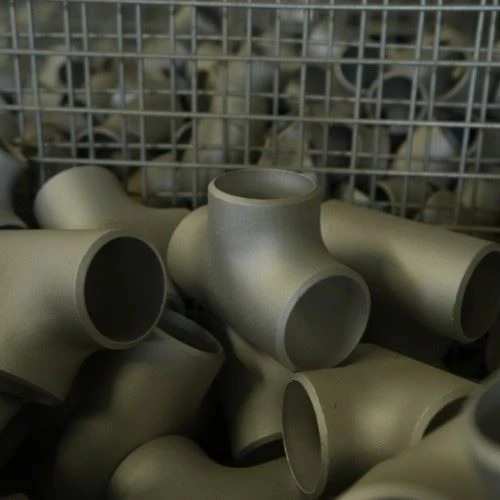

Butt-Weld Aluminum Tee
A butt-weld aluminum tee is joined to the pipe by welding. The pipe and fitting ends are aligned and welded together. This connection is used for permanent piping assemblies.
Applicable factory-made wrought aluminum and aluminum-alloy welding fittings can be supplied according to ASTM B361, with dimensions according to ASME B16.9 where applicable.
Typical uses:
Industrial piping
Compressed-air systems
Marine piping
Equipment connections
Threaded Aluminum Tee
A threaded aluminum tee uses threaded ends to connect compatible pipes, fittings, valves or other components.
Common thread requirements:
NPT
BSPT
BSPP
Metric threads where specified
NPT and BSP are different thread systems and should not be treated as interchangeable. Specify the thread type and size when requesting a quotation.
Applicable forged aluminum and aluminum-alloy threaded fittings can be supplied according to ASME B16.52, which covers dimensions, tolerances, ratings, marking and material requirements.
Socket-Weld Aluminum Tee
A socket-weld aluminum tee has socket ends. The mating pipe or tube is inserted into the socket, then welded.
This connection is commonly considered for small-bore piping where a socket-weld configuration is appropriate.
Applicable forged aluminum and aluminum-alloy socket-welding fittings can be supplied according to ASME B16.52. Confirm the socket dimensions, pipe size, alloy and wall thickness before production.
Aluminum Tee Dimensions
For butt-welding tees, dimensional requirements should be established according to the applicable ASME B16.9 configuration.
ASME B16.9-2024 covers factory-made wrought butt-welding fittings from NPS 1/2 through NPS 48 (DN15 through DN1200) and includes dimensions, tolerances, ratings, testing and marking requirements.
Common Equal Tee Reference Dimensions
|
NPS |
DN |
Outside Diameter |
Center-to-End (Run and Branch) |
|
1/2" |
15 |
21.3 mm |
25 mm |
|
3/4" |
20 |
26.7 mm |
29 mm |
|
1" |
25 |
33.4 mm |
38 mm |
|
1 1/4" |
32 |
42.2 mm |
48 mm |
|
1 1/2" |
40 |
48.3 mm |
57 mm |
|
2" |
50 |
60.3 mm |
64 mm |
|
2 1/2" |
65 |
73.0 mm |
76 mm |
|
3" |
80 |
88.9 mm |
86 mm |
|
3 1/2" |
90 |
101.6 mm |
95 mm |
|
4" |
100 |
114.3 mm |
105 mm |
|
5" |
125 |
141.3 mm |
124 mm |
|
6" |
150 |
168.3 mm |
143 mm |
|
8" |
200 |
219.1 mm |
178 mm |
|
10" |
250 |
273.0 mm |
216 mm |
|
12" |
300 |
323.8 mm |
254 mm |
Note: These values are standard dimensional references from ASME B16.9 for the equal butt-weld tee. They are not a guarantee of GNEE stock for every alloy or wall thickness.
For reducing tees, dimensions vary with the run and branch combination and should be confirmed for the specific size pair. For custom aluminum tees, GNEE can work from a customer drawing or an agreed specification.
Aluminum Tee Technical Specifications
|
Parameter |
Specification |
|
Product |
Aluminum Tee |
|
Types |
Equal Tee / Reducing Tee |
|
Branch Configuration |
90° branch |
|
Connection |
Butt Weld / Threaded / Socket Weld |
|
Size |
NPS / DN / OD according to product design |
|
GNEE Standard Supply Range |
NPS 1/2–24 (confirm actual range with GNEE) |
|
Larger Sizes |
Available for evaluation on request |
|
Wall Thickness |
According to applicable fitting dimensions, pipe dimensions or customer drawing |
|
Alloy |
6061, 6063, 5052, 5083, 5086, 3003, 1060 and other suitable aluminum alloys |
|
Temper |
According to alloy, manufacturing process and material specification |
|
Thread |
NPT / BSP / Metric where applicable |
|
Surface |
Mill Finish / Anodized / Customer-Specified Finish |
|
Manufacturing |
Formed / Forged / Machined / Other qualified processes |
|
Inspection |
Visual / Dimensional / Material Verification / Additional Testing on Request |
|
Packaging |
Carton / Wooden Case / Wooden Pallet according to size and shipping requirements |
Standards by Connection Type
|
Tee Type |
Applicable Standard |
|
Butt-Weld Equal Tee |
ASTM B361 / ASME B16.9 |
|
Butt-Weld Reducing Tee |
ASTM B361 / ASME B16.9 |
|
Threaded Tee |
ASME B16.52 |
|
Socket-Weld Tee |
ASME B16.52 |
Confirm the exact standard against the actual product design and your purchase specification. Material requirements should be confirmed against the applicable material specification.
About Pipe Schedule
Where the tee matches compatible pipe dimensions, customers can specify pipe schedules such as SCH10, SCH40, SCH80 or SCH160.
Pipe schedule is not a standalone pressure rating for an aluminum tee. The actual pressure capability depends on:
Aluminum alloy
Temper
Wall thickness
Tee geometry
Fitting size
Operating temperature
Connection method
Applicable design code
Service conditions
GNEE recommends confirming the complete fitting specification before assigning a pressure rating.
Aluminum Tee Alloys
Different aluminum alloys offer different combinations of strength, corrosion resistance, weldability, machinability and formability.
|
Alloy |
Main Characteristics |
Potential Applications |
| 6061 Aluminum Tee |
Good strength, machinability and weldability |
Industrial piping and equipment connections |
|
6082 Aluminum Tee |
Higher-strength 6000-series alloy |
Engineering and structural applications |
|
6063 Aluminum Tee |
Good extrusion characteristics and surface finish |
Lightweight tubing and selected piping applications |
|
5052 Aluminum Tee |
Good formability and corrosion resistance |
HVAC and fabricated applications |
| 5083 Aluminum Tee |
High corrosion resistance and good weldability |
Marine and offshore applications |
|
5086 Aluminum Tee |
Corrosion resistance and weldability |
Marine and corrosion-resistant systems |
|
3003 Aluminum Tee |
Good formability and corrosion resistance |
Selected general-purpose applications |
|
1060 Aluminum Tee |
High aluminum content, excellent corrosion resistance |
Low-strength applications where suitable |
Applications of Aluminum Tee
Industrial Piping
Aluminum tees can create branch connections in compatible industrial piping systems, equipment connections and distribution lines.
Compressed Air
Tees can divide compressed-air flow between the main distribution line and branch lines. Aluminum systems are often chosen where lightweight installation and corrosion resistance are important.
HVAC and Air Handling
Aluminum tees can create branch connections in compatible HVAC and air-handling systems.
Marine Piping
Aluminum alloys such as 5083 and 5086 can be considered for suitable marine applications where corrosion resistance, low weight and weldability are required. Confirm the alloy and temper according to the marine project specification.
Instrumentation
Small-bore threaded or socket-weld tees may be used for selected gauge, sensor and instrument connections. Confirm the thread type, pressure requirements and material compatibility before installation.
Equipment Connections
Aluminum tees can be used around compatible pumps, valves, manifolds, heat exchangers, tanks and process equipment.
Inspection and Quality Control
GNEE can arrange inspection according to the agreed product specification and purchase order.
Material Inspection
Alloy verification
Temper verification
Chemical composition documentation
Material certificate review
Dimensional Inspection Critical dimensions may include:
Run outside diameter
Branch outside diameter
Wall thickness
Center-to-end dimensions
Branch position
Overall dimensions
End preparation
Thread dimensions where applicable
Socket dimensions where applicable
Surface Inspection Products can be checked for visible defects such as:
Cracks
Dents
Scratches
Deformation
Surface damage
Additional Inspection
Depending on the purchase specification, additional inspection can be arranged:
PMI
Dye penetrant testing
Pressure testing where applicable
Customer-specified inspection
Inspection requirements should be agreed before production.
Packaging

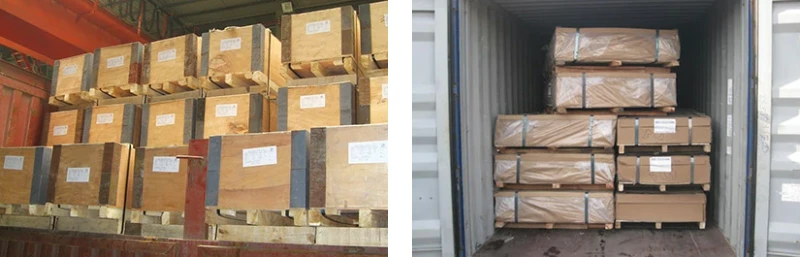

GNEE uses export packaging designed to protect aluminum tees during handling, loading and international transportation.
Typical packaging:
Individual protective bags
Plastic film
Kraft paper
Cartons
Wooden cases
Wooden pallets
Strapping
Small fittings go in cartons, then on pallets. Large tees can be secured on pallets or packed in wooden cases, depending on size and shipping requirements.
Packaging can be adjusted for container loading, fitting size, quantity, destination and customer packaging instructions.
