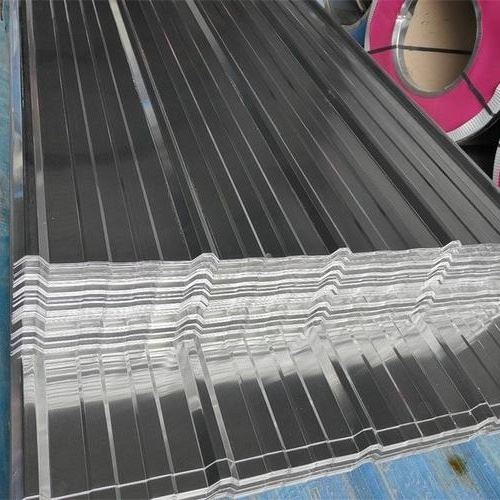

3004 Corrugated Aluminum Plate Description
3004 Corrugated Aluminum Plate is an aluminum-magnesium-manganese alloy material widely used in building roofing, wall cladding, and related applications. It features a lightweight design, excellent corrosion resistance, and high strength. The plate is produced using 3004 aluminum alloy as the base material, then shaped into a corrugated profile through cold bending or rolling. This combination merges the corrosion resistance of 3004 alloy with the mechanical benefits of the corrugated structure.
As a corrosion-resistant and non-heat-treatable aluminum alloy sheet, 3004 is similar to 3003 but contains an additional 1% magnesium to improve its strength. Known for its durability and light weight, it is especially suitable for roofing and wall panels. The corrugated form enhances both the structural integrity and visual appeal of buildings, while its excellent formability, coating adaptability, and customization options further expand its range of applications.
Materials and Properties
3004 aluminum alloy belongs to the aluminum-manganese family and contains a higher proportion of manganese, which boosts its corrosion resistance and strength, making it ideal for long-term use in harsh environments.
Composition: Manganese-aluminum alloy with a small amount of magnesium, offering greater strength compared to 3003 alloy.
Durability: Highly resistant to rust and corrosion.
Non-heat-treatable: Cannot be strengthened through heat treatment.
Strength: Offers higher tensile strength than regular aluminum plates, capable of withstanding significant mechanical stress and wind loads, making it suitable for structural applications requiring high strength.
Corrosion Resistance: Excellent resistance to corrosion in humid, marine, and acidic or alkaline environments, maintaining both appearance and performance over time.
Formability: Outstanding workability allows the material to be easily shaped into various corrugated profiles through hot pressing or stamping to meet different design needs.
Lightweight: The corrugated structure provides high strength while reducing weight, facilitating transportation and installation.
Impact Resistance and Shock Absorption: The unique corrugated form enhances impact resistance and vibration absorption, effectively extending the service life of the material.
3004 Corrugated Aluminum Plate Specifications
| Alloy | 3004 |
| Temper | H14 |
| Thickness | 0.2-6.0mm |
| Width | 200-2650mm |
| Length | 1-10mm |
| Wave height | 17-18 mm |
| Coating | Galvanized, color coated |
| Standard | GB/T 3880-2005, B209-2020, JC/T 1074-2012, ASTM A1196-2020, ISO 9001, CE, SGS |
| Remark | Specifications can be customized |

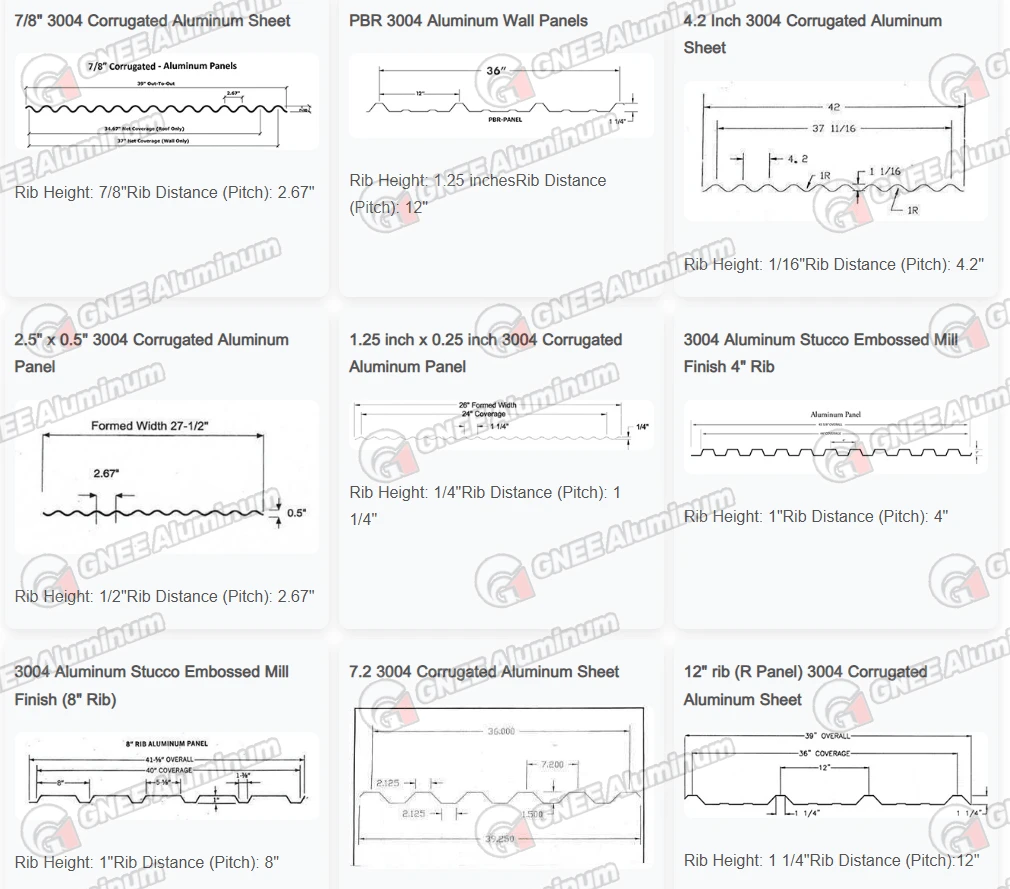

Popular 3004 Aluminum Corrugated Panels for Roofing and Cladding
3004 Corrugated Aluminum Plate Surface Treatments
PVDF 3004 Corrugated Aluminum Plate
After PVDF coating, the surface of the 3004 corrugated aluminum plate forms a highly weather-resistant protective layer that effectively withstands UV radiation, rain, acid rain, and other environmental corrosion. The coating is vibrant, durable, and fade-resistant, making it ideal for exterior wall cladding, roofing, and industrial structures. PVDF-coated plates combine the lightweight and corrosion-resistant properties of aluminum, maintaining excellent strength while reducing long-term maintenance costs.
Key Advantages:
Excellent weather resistance and long-lasting color stability
Strong resistance to corrosion and oxidation
Attractive appearance with customizable color options
Easy to clean and maintain
Anodized 3004 Corrugated Aluminum Plate
The anodized 3004 corrugated aluminum plate features a dense and hard oxide layer formed on its surface, significantly enhancing corrosion and wear resistance. This oxide film adheres tightly to the aluminum substrate, preventing oxidation and environmental degradation while providing a natural metallic sheen or optional colored finish. Anodized aluminum plates are widely applied in architectural decoration, curtain walls, roofing, and industrial facilities, offering a perfect balance of durability and visual appeal.
Key Advantages:
Enhanced corrosion and wear resistance
High surface hardness for extended service life
Available in natural metallic tones or dyed finishes
Eco-friendly and easy to maintain
Color-Coated 3004 Corrugated Aluminum Plate
The color-coated 3004 corrugated aluminum plate is produced by applying multiple layers of organic coatings to the substrate and baking them to form a uniform, durable finish. This process not only provides a rich selection of colors but also enhances corrosion resistance and decorative value. Color-coated aluminum plates are commonly used in commercial buildings, industrial facilities, roofs, walls, and decorative panels, offering both aesthetic beauty and long-term reliability.
Key Advantages:
Wide range of customizable colors
Improved corrosion resistance
Smooth, uniform surface finish
Durable and visually appealing, ideal for architectural applications
Advantages of Corrugation
Structural Integrity: The corrugated pattern increases the plate's strength and stiffness.
Aesthetic Appeal: Creates a classic, visually appealing look for roofs and walls.
Functionality: The wave design enhances waterproofing and simplifies installation.
Applications of 3004 Corrugated Aluminum Plate
Construction Industry
Roofs and Walls: Extensively used in roofing and wall cladding for buildings requiring windproof, waterproof, and corrosion-resistant materials. The corrugated design not only adds visual appeal but also improves structural rigidity, ensuring durability and resistance to deformation.
Exterior Decoration: With its excellent appearance and durability, 3004 corrugated aluminum plate is ideal for commercial buildings, factories, warehouses, and other large-scale structures.
Transportation Industry
Containers and Vehicles: Due to its lightweight and corrosion resistance, it is widely used in containers, vehicle exteriors, and other transport structures that must withstand diverse environmental conditions.
Soundproofing and Shock Absorption: The strong impact resistance and vibration-damping qualities make it suitable for soundproof and shock-absorbing applications in vehicles and containers.
Other Applications
Fireproof and Thermal Insulation: The corrugated structure improves heat and fire resistance, making it suitable for insulation applications.
Environmental Applications: Non-toxic and non-polluting, the 3004 corrugated aluminum plate meets modern environmental standards and is widely used in eco-friendly construction and green projects.
3004 Corrugated Aluminum Plate Chemical Composition Limits
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others-Each | Others Total | Al Min |
| 3004 | 0.30 | 0.7 | 0.25 | 1.0-1.5 | 0.8-1.3 | – | 0.25 | 0.25 | 0.05 | 0.15 | Remainder |
Typical Mechanical Properties Data Of Aluminum 3004
| Alloy-Temper | Tensile Strength (ksi) |
Yield Strength (ksi) |
Elongation (%) |
| 3004-O | 26 | 10 | 19 |
| 3004-H34 | 39 | 29 | 5 |
| 3004-H38 | 41 | 36 | 4 |
