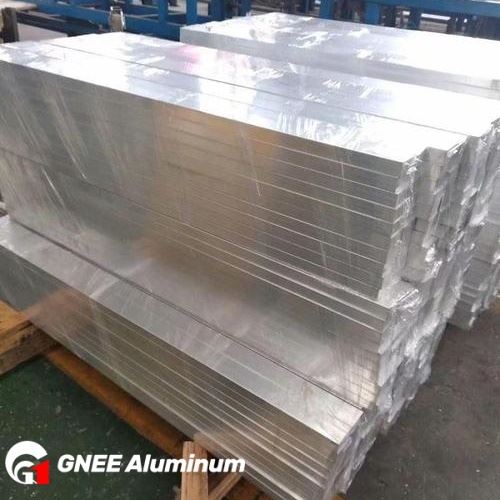

Henan Gnee New Material Co., Ltd. is one of the most reliable manufacturers and suppliers of 6061 t4 t6 electrical aluminum flat bar in China. With abundant experience, we warmly welcome you to wholesale high quality 6061 t4 t6 electrical aluminum flat bar in stock here from our factory. Good service and reasonable price are available.
Made from a heat-treatable aluminum alloy, 6061 aluminum flat bar is a popular extruded aluminum product. It is ideal for a variety of product manufacturing processes due to its exceptional machinability and resistance to corrosion. It is a great option for lightweight components because of its excellent strength-to-weight ratio. 6061 aluminum flat bars are a typical raw metal commodity that may be used for a wide range of applications, including mounting plates on brackets and rectifier components, as well as adding structural elements to window frames or electrical fittings.
Available tempers & specifications
Tempers: T4, T6, T651, T6511
Equivalent Names: A96061, EN AW-6061, AlMgSiCu, HE20, AA6061, 3.3211
Standards Compliance: ASTM B317, ASTM B236, IEC 60105, ISO 209-1/2, DIN EN 755-2, DIN EN 755-5:2008-06, ASTM B221, AMS-QQ-A-200/8
6061-T4-T6-Electrical-Aluminum-Flat-Bar.pdf
Surface treatment & processing
The surface must be clean, oil-free, burr-free, smooth, and have a thick, even coating of oxide for better corrosion resistance.
Anodizing increases durability and resistance to oxidation.
Tin plating and electroplating, which are available in nickel, tin, and silver, improve conductivity and corrosion resistance.
Copper Clad Aluminum (CCA) Processing: Hot-dip, rolling, or explosive welding are methods used to apply copper cladding.
Insulation Coating & Sleeves: PVC, heat-shrink tubing, silicone rubber, epoxy resin coating, insulation paint, powder coating, etc.
Protective spraying prolongs service life by adding extra surface protection.
Edge processing options include right angles, rounded corners, and R-rounded corners, which are customized to meet various assembly and structural requirements.
Cutting, Drilling, Bending, and Stamping in Machining and Fabrication
Quality control and testing
Every 6061 aluminum flat busbar is put through a thorough testing process, which includes the Conductivity Test, which guarantees excellent electrical performance.
Thermal stability in electrical applications is verified using the Temperature Rise Test.
Bending test: evaluating the flexibility and strength of a machine.
GNEE hot-selling aluminum 6061 flat busbar products
There are several methods for producing and processing 6061 aluminum busbars. GNEE, one of the most well-known producers of aluminum, has hundreds of extrusion molds available. Utilizing pre-existing molds helps lower mold prices and processing charges for large sales. Thick plate sawing and other processing techniques can be used for bespoke sizes to precisely match product specifications while reducing expenses.
6061 extruded aluminum flat busbar
Provides outstanding machinability, high strength, and strong resistance to corrosion. Consistent quality and exact dimensions are made possible by the extrusion process.
6061 aluminum flat bar by plate sawing
More practical processing technique, adaptable size without mold constraints. Accurate dimensions appropriate for a range of applications are guaranteed by the sawing process.
6061 EC grade aluminum busbar
It is well-known for having outstanding thermal conductivity, strong electrical conductivity, and exceptional corrosion resistance.
6061 round corner aluminum busbar
Reduce stress concentration and increase safety to increase their dependability and longevity in a variety of applications.
| Aluminium 6101 AMS 4116 6061-T4 Cold Finished Hex, Square, Flat Bars Standards | ASTM B221, ASTM EN573, ASTM EN485 |
| Aluminium 6101 AMS 4116 6061-T4 Cold Finished Square Bars size | 8mm x 8mm to 300mm x 300mm |
| Aluminium 6101 AMS 4116 6061-T4 Cold Finished Flat bar Thickness | 3mm to 70mm |
| Aluminium 6101 AMS 4116 6061-T4 Cold Finished Flat bar Width | 5mm to 250mm |
| Aluminium 6101 AMS 4116 6061-T4 Cold Finished Hexagonal Bar Size | 14mm to 100mm |
| Aluminium 6101 AMS 4116 6061-T4 Cold Finished Hex, Square, Flat Bars Length | 1000 mm to 8000 mm |
| Aluminium 6101 AMS 4116 6061-T4 Cold Finished Hex, Square, Flat Bars Tempers | O, H12, H14, H16, H18, H22, H24, H26, H112 |
| Aluminium 6101 AMS 4116 6061-T4 Cold Finished Hex, Square, Flat Bars Finish | As per Temper |
| Aluminium 6101 AMS 4116 6061-T4 Cold Finished Hex, Square, Flat Bars Delivery | 15 to 30 Working days From the Date of Purchase Order |
| Aluminium 6101 AMS 4116 6061-T4 Cold Finished Hex, Square, Flat Bars Origin | Indian, European, Germany, South Africa, Mexico, USA & Russian |
| Aluminium 6101 AMS 4116 6061-T4 Cold Finished Hex, Square, Flat Bars Test Certificate | EN 10204 3.1 Mill TC or Any 3rd party Inspection shall be Available. |
| Aluminium 6101 AMS 4116 6061-T4 Cold Finished Hex, Square, Flat Bars Packing & Shipping | Packing shall be SEA Worthy wooden packaging, with Fumigation as well as delivery of Aluminium 6101 Alloy Round Bars can be given by air & Sea as per clients requirements. |
| Aluminium 6101 AMS 4116 6061-T4 Cold Finished Hex, Square, Flat Bars Applications | • Highly stressed applications • Trusses • Bridges • Cranes • Transport applications • Ore skips • Beer barrels • Milk churns |
Properties of GNEE aluminum 6061 flat busbar
| Alloy-temper | 6061-T6 | 6061-T651 | 6061-T6511 |
| Tensile Strength | 270-310 MPa | 270-320 MPa | 270-290 MPa |
| Shear Strength | 210 MPa | 210 MPa | 170 MPa |
| Elastic Modulus | 69 GPa | 69 GPa | 69 GPa |
| Brinell Hardness | 93 | 93 | - |
| Elongation at Break | 10% | 11% | 9% |
| Thermal conductivity (20°C) | 3.9 | ||
| Electrical conductivity (20°C) | 42-43 | ||
| Electrical resistivity (dc) (20°C) | 19.39 18.94 | ||
| Temperature coefficient of electrical resistance (20°C) | 0.00284 0.00277 | ||
Manufacturing Processing and Customization capabilities
One of the top producers of high-performance aluminum busbars, GNEE Aluminum has extensive processing, modification, and production capabilities to satisfy a range of electrical and industrial applications. Our cutting-edge facilities guarantee precise machining, superior surface treatments, and cutting-edge material cladding to improve performance, dependability, and longevity.
Surface preparation for improved functionality
We provide the following surface treatments to our aluminum busbars to increase their longevity, conductivity, and resistance to corrosion:
Anodizing: Creates a thick coating of oxide to improve resistance to corrosion.
Electroplating: This technique uses nickel, tin, or silver to improve oxidation resistance and electrical conductivity.
Long-term performance in challenging conditions is ensured by protective spraying.
Personalization and quality control
Custom orders based on certain mechanical and electrical specifications are supported by us, including:
Custom measurements: Length up to 6m, Width 10mm to 200mm, Thickness 0.15mm to 40mm.
specialized bending and forming-made to match certain electrical configurations.
Strict testing protocols-such as bending, temperature increase, and conductivity tests-are used to ensure peak performance.
Accurate fabrication and machining
For a range of applications, we provide sophisticated machining services to achieve exact dimensions and structural integrity:
Cutting: Personalized length modifications for various applications.
Drilling: Accurately placing holes for electrical connections.
Bending: Customized shape to meet intricate assembly specifications.
For consistent busbar components, stamping is a high-efficiency mass manufacturing method.
Advantage of GNEE Aluminum 6061 aluminum flat busbar
GNEE can offer full design services, which include brazing, forming, and machining. Processing such as drilling, bending, stamping, and cutting can be done in accordance with the particular needs of the client.
High Strength: The 6061 aluminum alloy has a high strength following heat treatment, meaning it can endure loads and mechanical stress.
Lightweight: 6061 conductive aluminum busbars provide an advantage in situations that need for lightweight designs since aluminum alloy is comparatively lighter than many other metals.
Good Corrosion Resistance: The 6061 aluminum alloy is resistant to corrosion in a variety of environmental and chemical environments.
Good Machinability: The 6061 aluminum alloy has a wide range of applications due to its ease of shaping and machining, which satisfies a variety of requirements for intricate sizes and forms.
Outstanding Conductivity: The 6061 aluminum alloy is an efficient conductor of electric current due to its exceptional conductivity. For conductive aluminum busbars, GNEE can offer surface coating and insulation processing in accordance with client specifications to enhance product corrosion resistance, aesthetics, and prevent short circuits and other problems.
Application industries of GNEE Aluminum 6061 electrical aluminum busbar and 6061 flat bar products
Electrical fittings, conductive connections, conduction lines, and other applications call for 6061 aluminum busbar for electronics and electrical engineering.
Connecting cables, switches, circuit breakers, and other power equipment in power transformers, substations, and distribution equipment is known as the power transmission and distribution system.
Electronic equipment: capable of connecting integrated circuits, capacitors, resistors, and other electronic components.
The new energy system may be utilized for wind turbine and solar panel connecting systems and power output.
Inverters, frequency converters, and motor controllers are examples of power electronic equipment.
Construction and building 6061 aluminum flat bar is used for ornamental panels, stair rails, window and door frames, and structural supports.
Aerospace 6061 aluminum flat bar is used in spacecraft parts, aircraft fittings, and structural elements of aircraft.
6061 aluminum flat bar is used in truck parts, rail carriage structures, automobile body structures, and other automotive and transportation manufacturing applications.
6061 aluminum flat bar for machining: Used to make tools, jigs, and other parts for machines.
Sports and leisure equipment 6061 aluminum flat bar is used to make skateboard decks, bicycle frames, outdoor gear, and other items.
Marine engineering 6061 aluminum flat bar is used in equipment, ship parts, and marine platform constructions, among other things.
For decorative arts, 6061 aluminum flat bar is utilized in sculptures, decorations, artwork, and more.
