Henan Gnee New Material Co., Ltd. is one of the most reliable manufacturers and suppliers of 6063 T6 Aluminum Tube in China. With abundant experience, we warmly welcome you to wholesale high quality 6063 T6 Aluminum Tube in stock here from our factory. Good service and reasonable price are available.

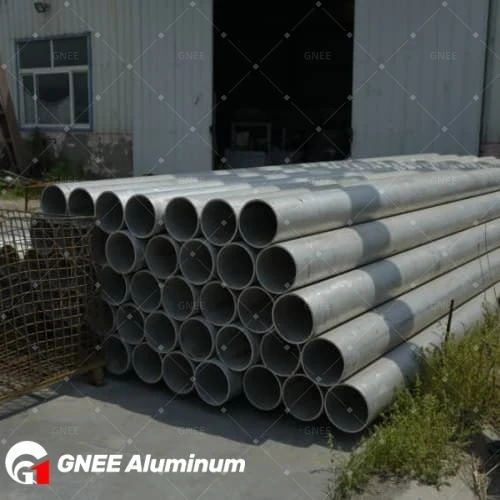

What is 6063 T6 aluminum tube
6063 is a low-alloy Al-Mg-Si grade: little copper, moderate magnesium and silicon, so it extrudes and draws cleanly and anodizes to an even film. The T6 temper means solution heat treatment then artificial ageing, which lifts strength above the as-extruded T5 level while keeping good corrosion resistance. That mix - load capacity plus a finish-ready surface - makes 6063 T6 the default for architectural and decorative tube. It is heat-treatable; H-tempers do not apply.
For a quote, send the outside diameter, wall, length and surface; we confirm the form (drawn or extruded) and temper that fit your drawing.
Specifications of 6063 T6 aluminum tube
| Item | What we supply |
|---|---|
| Grade | 6063 |
| Temper | T6 (T5, T4 and O also available) |
| Form | Drawn seamless round tube (primary); extruded seamless, square and rectangular on request |
| Outer diameter (OD) | 6–300 mm typical; larger on request |
| Wall thickness (WT) | 0.5–20 mm |
| Length | 1–6 m cut to length; longer or coil on request |
| Surface | Mill finish; anodized or powder-coated on request |
| Standard | ASTM B210 (drawn), ASTM B241 / B241M (extruded), EN 755-2, EN 573-3 |
Sizes are orderable typical ranges, not a stock guarantee; final dimensions and temper are fixed by your confirmed drawing and MTC.
Chemical composition of 6063 aluminum tube
| Element | Limit (wt%) |
|---|---|
| Si | 0.20–0.60 |
| Fe | ≤0.35 |
| Cu | ≤0.10 |
| Mn | ≤0.10 |
| Mg | 0.45–0.90 |
| Cr | ≤0.10 |
| Zn | ≤0.10 |
| Ti | ≤0.10 |
| Al | remainder |
Limits per AA / ASTM B210 / EN 573-3. Final heat analysis is on the MTC.
Mechanical properties of 6063 T6 aluminum tube
| Temper | UTS (MPa) | Yield (MPa) | Elongation (%) | Hardness |
|---|---|---|---|---|
| T6 (this listing) | 241 | 214 | ≥8 | ~73 HB |
| T5 | 186 | 145 | ≥8 | - |
| T4 | ~130 | ~70 | ≥16 | - |
| O | ≤130 | ≤65 | ≥18 | - |
T6 values are minimum per ASTM B210; T5/T4/O shown for comparison, all per MTC.
Typical physical values
| Property | Value |
|---|---|
| Density | 2.70 g/cm³ |
| Thermal conductivity | 209 W/m·K |
| Electrical conductivity | 53% IACS |
| Coefficient of thermal expansion | 23.4 ×10⁻⁶/K |
| Modulus of elasticity | 68.9 GPa |
| Melting range | 615–655 °C |
Dimensions and tolerances of 6063 T6 aluminum tube
Drawn seamless tolerances below are per ANSI H35.2(M) §11. Extruded seamless (§12, "other alloys" columns) is looser and used for larger sections; state the form when you need exact figures.
Outside diameter - drawn seamless (mm)
| OD band | Mean deviation | Any-point deviation |
|---|---|---|
| ≤12.50 | 0.05 | 0.08 |
| 12.50–25.00 | 0.10 | 0.10 |
| 25.00–50.00 | 0.13 | 0.13 |
| 50.00–80.00 | 0.15 | 0.15 |
| 80.00–100.00 | 0.20 | 0.20 |
| 100.00–150.00 | 0.25 | 0.25 |
| 150.00–200.00 | 0.38 | 0.38 |
| 200.00–250.00 | 0.50 | 0.50 |
| 250.00–300.00 | 0.64 | 0.64 |
Wall, length and straightness
Wall thickness (drawn): ±0.05 mm up to 0.80 mm; ±0.08 at 0.80–1.20 mm; ±0.10 at 1.20–2.00 mm; ±0.13 at 2.00–3.20 mm; ±0.15 at 3.20–5.00 mm; ±0.20 at 5.00–8.00 mm. Eccentricity ±10% of mean wall (min ±0.06 mm).
Length: +7 mm up to 5000 mm, +10 mm to 10000 mm, +13 mm to 15000 mm, +25 mm beyond.
Straightness: 1 mm/m for OD 9.50–150 mm; 2 mm/m below 9.50 mm total; 2 mm/m above 150 mm.
Buyer-specified single-side limits take priority; the ANSI value above is the matching standard bilateral tolerance.

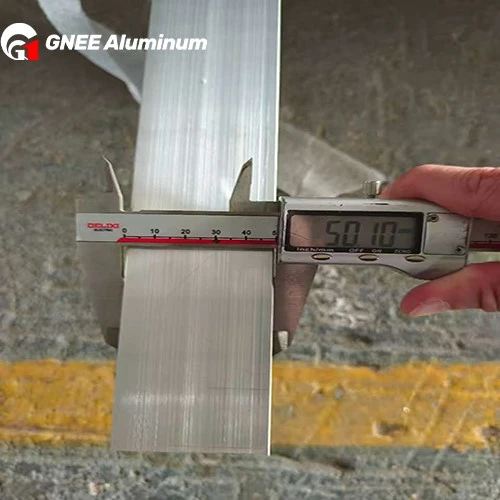

Quality checks on 6063 aluminum tube

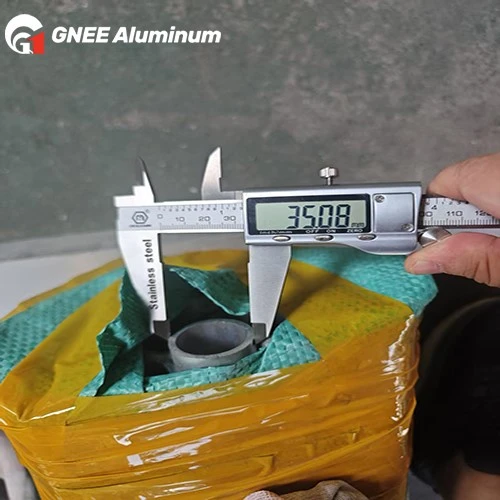

Dimensions: OD, wall (minimum reading recorded, not average), length, end squareness and ovality checked per lot against the confirmed drawing.
Alloy check: handheld XRF verifies the grade on the piece against the MTC heat analysis; full chemistry by optical emission spectrometry.
Temper check: tensile test (ASTM B557) and Brinell hardness (ASTM E10) confirm the tube reached T6, since 6xxx strength comes from ageing.
Surface: outer and inner faces scanned for cracks, laps, burrs and anodize colour difference where coating is specified.
Certificate: EN 10204 3.1 MTC with every shipment; third-party inspection (SGS / BV) arranged on request.
Application of 6063 T6 aluminum tube
| Field | Use | Typical size |
|---|---|---|
| Precision & hydraulic | Low-pressure lines, actuator and instrument bodies | OD 10–60 × WT 1.0–4 mm |
| Heat transfer | Heat-exchanger and cooler tubes | OD 10–80 × WT 1.0–3 mm |
| Architecture | Window and curtain-wall frames, handrails | OD 20–150 × WT 1.5–4 mm |
| Solar | PV panel mounting rails and frames | OD 30–80 × WT 1.5–3 mm |
| Display & furniture | Booth frames, furniture, shelving | OD 15–60 × WT 1.0–2.5 mm |
| Transport | Bicycle frames, vehicle trim, luggage racks | OD 20–60 × WT 1.5–3 mm |
Processing and fabrication of 6063 aluminum tube
Cutting: circular saw to length (1–6 m standard); CNC for close-tolerance ends and holes. Drawn tube holds tighter bored tolerances than extruded.
Welding: 6063 T6 welds well. Use 4043 filler for the closest anodized colour match, or 5356 where the joint needs more strength. The heat-affected zone relaxes toward T4 strength, so design welded structures with that in mind or plan a post-weld re-age.
Forming: T6 has less bend allowance than T5 or O. For tight radii, form in T5/O and age, or order T5.
Surface: anodize clear or coloured, or powder-coat; 6063 takes a uniform anodized film, which is why it leads in architectural work.
Galvanic care: isolate the tube from steel or copper in wet service to avoid galvanic corrosion.
About GNEE
GNEE has supplied aluminum products since 2008 and exported to 100+ countries and regions.
Common 6061, 6063 and 5052 tube and bar sections are normally in stock; both small and large orders are accepted, with a flexible MOQ.
Lead time is 15–30 days from drawing or sample confirmation; an EN 10204 3.1 mill certificate goes with each shipment, and 3.2 or third-party inspection is arranged on request.
Our technical team helps pick the right temper and section for the service condition instead of quoting a generic size.
Trade terms are FOB or CIF; payment by T/T or L/C.
FAQ
Is 6063 T6 stronger than 6063 T5?
Yes. T6 is solution heat treated and aged, giving about 241 MPa UTS and 214 MPa yield for 6063, against 186 MPa and 145 MPa for T5 (minimum per ASTM B210, confirmed per MTC). Use T6 where the member carries load; T5 suits lightly stressed or decorative parts.
Which standard covers 6063 T6 tube?
ASTM B210 for drawn seamless tube and ASTM B241 / B241M for extruded seamless; EN 755-2 and EN 573-3 are the European equivalents. State the standard you need in the inquiry and we confirm applicability.
Can you cut to length and supply small quantities?
Yes. We cut to 1–6 m (shorter on request) and supply both drawn and extruded forms. MOQ is flexible, so small orders are workable.
Do you provide an MTC and inspection?
An EN 10204 3.1 MTC is issued with every shipment, and third-party inspection (SGS / BV) is arranged on request before packing.
What are the lead time and payment terms?
Lead time is 15–30 days from drawing or sample confirmation. We work on FOB or CIF terms with payment by T/T or L/C.
Request a quote
Send your application, outside diameter, wall, length, temper and required standard to GNEE. We will confirm alloy selection, packing and lead time together with the quotation.
